C#/ASP.NET/ASP MVC - Retrieve email using Microsoft OAuth 2.0 + EWS/IMAP4/Graph API protocol from Office 365 account

You can retrieve email using traditional user/password authentication from Office 365 account by EWS/IMAP4 Protocol.

However, Microsoft will disable traditional user authentication in the future, switching to Microsoft OAuth (Modern Authentication) is strongly recommended now.

Installation

Before you can use the following sample codes, you should download the EAGetMail Installer and install it on your machine at first. Full sample projects are included in this installer.

Install from NuGet

You can also install the run-time assembly by NuGet. Run the following command in the NuGet Package Manager Console:

Install-Package EAGetMail

Note

If you install it by NuGet, no sample projects are installed, only .NET assembly is installed.

Add reference

To use EAGetMail POP3 & IMAP Component in your project, the first step is “Add reference of EAGetMail to your project”. Please create or open your project with Visual Studio, then go to menu -> Project -> Add Reference -> .NET -> Browse..., and select Installation path\Lib\[netversion]\EAGetMail.dll, click Open-> OK, the reference will be added to the project, you can start to use it to retrieve email and parse email in your project.

add reference in c#/vb.net/managed c++/cli

.NET assembly

Because EAGetMail has separate builds for .Net Framework, please refer to the following table and choose the correct dll.

Separate builds of run-time assembly for .Net Framework 2.0, 4.0, 4.5, 4.6.1, 4.7.2, 4.8.1, .NET 6.0, NET 7.0, .NET 8.0, .NET Standard 2.0 and .Net Compact Framework 2.0, 3.5.

File .NET Framework Version
Lib\net20\EAGetMail.dll Built with .NET Framework 2.0
It requires .NET Framework 2.0, 3.5 or later version.
Lib\net40\EAGetMail.dll Built with .NET Framework 4.0
It requires .NET Framework 4.0 or later version.
Lib\net45\EAGetMail.dll Built with .NET Framework 4.5
It requires .NET Framework 4.5 or later version.
Lib\net461\EAGetMail.dll Built with .NET Framework 4.6.1
It requires .NET Framework 4.6.1 or later version.
Lib\net472\EAGetMail.dll Built with .NET Framework 4.7.2
It requires .NET Framework 4.7.2 or later version.
Lib\net481\EAGetMail.dll Built with .NET Framework 4.8.1
It requires .NET Framework 4.8.1 or later version.
Lib\net6.0\EAGetMail.dll Built with .NET 6.0
It requires .NET 6.0 or later version.
Lib\net7.0\EAGetMail.dll Built with .NET 7.0
It requires .NET 7.0 or later version.
Lib\net8.0\EAGetMail.dll Built with .NET 8.0
It requires .NET 8.0 or later version.
Lib\netstandard2.0\EAGetMail.dll Built with .NET Standard 2.0
It requires .NET Standard 2.0 or later version.
Lib\net20-cf\EAGetMail.dll Built with .NET Compact Framework 2.0
It requires .NET Compact Framework 2.0, 3.5 or later version.
Lib\net35-cf\EAGetMail.dll Built with .NET Compact Framework 3.5
It requires .NET Compact Framework 3.5 or later version.

Create your application in Azure Portal

To use Microsoft/Office365/Live OAuth (Modern Authentication) in your application, you must create a application in Azure Portal.

  • Sign in to the Azure portal using either a work or school account or a personal Microsoft account.
  • If your account gives you access to more than one tenant, select your account in the top right corner, and set your portal session to the Azure AD tenant that you want.

Search Microsoft Entra ID (old name “Azure Active Directory”) and go to this service:

go to azure active directory

Register application

In the left-hand navigation pane, select the Microsoft Entra ID service, and then select App registrations -> New registration.

register app in azure

Input a name to to register the application:

register app in azure

Single tenant and multitenant in account type

When the register an application page appears, enter a meaningful application name and select the account type.

Select which accounts you would like your application to support.

  • If your application only supports the users in your directory or organization, please select Single tenant type;
  • If your application needs to support all users in Office 365 and Microsoft personal account (hotmail.com, outlook.com), please select Multitenant type, and you must verify publisher.

Because we want to support all Office 365 and LIVE SDK (hotmail, outlook personal account), so select Accounts in any organizational directory and personal Microsoft accounts.

Important

If you don’t verify publisher for multitenant application, your application will not request access token successfully.

Assign API permission

Now you need to assign API permission to the application by clicking API Permission -> Add a permission.

add api permission to app in azure

You don’t have to assign all the API permissions below to the application, just assign the API permission(s) you need.

Protocol Permission Scope
Graph API Mail.Send, Mail.ReadWrite https://graph.microsoft.com/Mail.Send, https://graph.microsoft.com/Mail.ReadWrite
EWS EWS.AccessAsUser.All https://outlook.office.com/EWS.AccessAsUser.All
SMTP SMTP.Send https://outlook.office365.com/SMTP.Send
POP POP.AccessAsUser.All https://outlook.office365.com/POP.AccessAsUser.All
IMAP IMAP.AccessAsUser.All https://outlook.office365.com/IMAP.AccessAsUser.All

Now we need to add permission to the application:

  • Click API Permission ->
  • Add a permission -> Microsoft Graph -> Delegated Permission -> User.Read, email, offline_access, openid, profile, SMTP.Send, IMAP.AccessAsUser.All, POP.AccessAsUser.All, Mail.Send, Mail.ReadWrite.
azure application SMTP/POP/IMAP api permission

EWS API permission

With the above permissions, your application can support SMTP, POP and IMAP service. If your application needs to support EWS protocol either, add EWS permission like this:

  • Click API Permission ->
  • Add a permission -> APIs in my organization uses -> Office 365 Exchange Online -> Delegated Permission -> Check EWS.AccessAsUser.All
azure APIs in my organization uses

Here is permissions list:

azure application api permission list

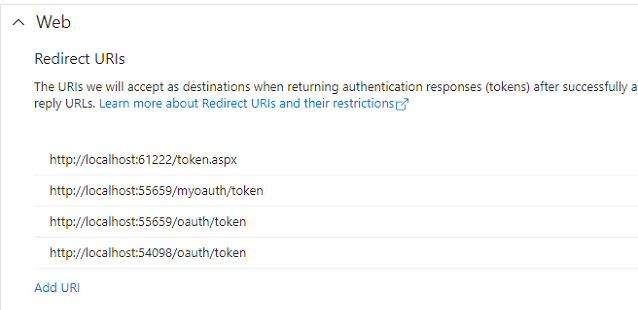

Authentication and redirect uri

Because the example code is based on desktop application, so add Redirect Uri like this:

  • Click "Authentication" -> Add a platform -> Mobile and desktop applications -> Redirect Uri, please check or add the following URI.

    https://login.microsoftonline.com/common/oauth2/nativeclient
    https://login.microsoftonline.com/common/oauth2/nativeclient
    http://127.0.0.1


    Note

    • https://login.microsoftonline.com/common/oauth2/nativeclient is used for Live SDK, http://127.0.0.1 is used for local Http Listener.
  • If your application needs to support Microsoft personal account, set both "Live SDK Support" and "Treat application as a public client" to "Yes".

azure application Authentication Overview

Client Id and client secrets

Now we need to create a client secret for the application, click Certificates and secrets -> client secrets and add a new client secret.

azure application api permission

After client secret is created, store the client secret value to somewhere.

Important

Please store client secret value by yourself, because it is hidden when you view it at next time.

Branding and verify publisher

Now we click Branding, you can edit your company logo, URL and application name. If your application supports multitenant (access user in all Office 365 and Microsoft personal account), you must complete the publisher verification.

It is not difficult, you can have a look at publisher verification. After publisher verification is completed, your branding is like this:

azure application Authentication Overview

Important

You must complete the publisher verification for multitenant application, otherwise, your application will not request access token correctly.

Client id and tenant

Now you can click Overview to find your client id and tenant.

azure application client id and tenant
  • If your application is single tenant, use the tenant value in tokenUri and authUri instead of common.
  • If your application is multitenant, use common as tenant.

Above client id and client secret support both "Office365 + SMTP/POP/IMAP/EWS" and "Live (hotmail, outlook personal account) + SMTP/POP/IMAP",

Enable TLS Strong Encryption Algorithms in .NET 2.0 and .NET 4.0

Because HttpWebRequest is used to get access token from web service. If you’re using legacy .NET framework (.NET 2.0 - .NET 3.5 and .NET 4.0 - 4.6.1), you need to enable Strong Encryption Algorithms to request access token:

Put the following content to a file named NetStrongEncrypt.reg, right-click this file -> Merge -> Yes. You can also download it from https://www.emailarchitect.net/webapp/download/NetStrongEncrypt.zip.

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\.NETFramework\v2.0.50727]
"SystemDefaultTlsVersions"=dword:00000001
"SchUseStrongCrypto"=dword:00000001

[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\.NETFramework\v2.0.50727]
"SystemDefaultTlsVersions"=dword:00000001
"SchUseStrongCrypto"=dword:00000001

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\.NETFramework\v4.0.30319]
"SystemDefaultTlsVersions"=dword:00000001
"SchUseStrongCrypto"=dword:00000001

[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\.NETFramework\v4.0.30319]
"SystemDefaultTlsVersions"=dword:00000001
"SchUseStrongCrypto"=dword:00000001

Use client id and client secret to request access token

You can use client id and client secret to get the user email address and access token like this:

  • Your application uses a web browser/browser control to open Oauth Url;
  • User inputs user and password in web authentication page, and then the Oauth server returns access token back to your application;
  • Your application uses access token to access resource on the server.
  • You can find full example codes in EAGetMail Installation Path\Samples_{Programming language/Developer Tool} project.

Access token expiration and refresh token

You don’t have to open browser to request access token every time. By default, access token expiration time is 3600 seconds, you can use the access token repeatedly before it is expired. After it is expired, you can use refresh token to refresh access token directly without opening browser. You can find full sample project in EAGetMail installation path to learn how to refresh token.

Important

You should create your client id and client secret, do not use the client id from example codes in production environment, it is used for test purpose. If you got "This app isn't verified" information, please click "Advanced" -> Go to ... for test.

C# - Retrieve email using Microsoft OAuth + Office 365 IMAP4 protocol

Here is a console application which demonstrates how to use Microsoft OAuth to do user authentication and retrieve email using IMAP4 protocol.

Note

This sample cannot handle the event of Web Browser is closed by user manually before authentication is completed. You can refer to the better sample project which uses Web Browser Control in EAGetMail installation path.

using System;
using System.IO;
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Runtime.InteropServices;
using EAGetMail;
using System.Globalization;

namespace EAGetMailCSharpKb
{
    class Program
    {
        // Generate an unqiue email file name based on date time
        static string _generateFileName(int sequence)
        {
            DateTime currentDateTime = DateTime.Now;
            return string.Format("{0}-{1:000}-{2:000}.eml",
                currentDateTime.ToString("yyyyMMddHHmmss", new CultureInfo("en-US")),
                currentDateTime.Millisecond,
                sequence);
        }

        static void Main(string[] args)
        {
            Console.WriteLine("+------------------------------------------------------------------+");
            Console.WriteLine("  Sign in with MS OAuth                                             ");
            Console.WriteLine("   If you got \"This app isn't verified\" information in Web Browser, ");
            Console.WriteLine("   click \"Advanced\" -> Go to ... to continue test.");
            Console.WriteLine("+------------------------------------------------------------------+");
            Console.WriteLine("");
            Console.WriteLine("Press any key to sign in...");
            Console.ReadKey();

            try
            {
                Program p = new Program();
                p.DoOauthAndRetrieveEmail();
            }
            catch (Exception ep)
            {
                Console.WriteLine(ep.ToString());
            }

            Console.ReadKey();
        }


        void RetrieveMailWithXOAUTH2(string userEmail, string accessToken)
        {
            try
            {
                // Create a folder named "inbox" under current directory
                // to save the email retrieved.
                string localInbox = string.Format("{0}\\inbox", Directory.GetCurrentDirectory());
                // If the folder is not existed, create it.
                if (!Directory.Exists(localInbox))
                {
                    Directory.CreateDirectory(localInbox);
                }

                // Office 365 IMAP server address
                MailServer oServer = new MailServer("outlook.office365.com",
                        userEmail,
                        accessToken, // use access token as password
                        ServerProtocol.Imap4);

                // Set IMAP OAUTH 2.0
                oServer.AuthType = ServerAuthType.AuthXOAUTH2;
                // Enable SSL/TLS connection, most modern email server require SSL/TLS by default
                oServer.SSLConnection = true;
                // Set IMAP4 SSL Port
                oServer.Port = 993;

                MailClient oClient = new MailClient("TryIt");
                // Get new email only, if you want to get all emails, please remove this line
                oClient.GetMailInfosParam.GetMailInfosOptions = GetMailInfosOptionType.NewOnly;

                Console.WriteLine("Connecting {0} ...", oServer.Server);
                oClient.Connect(oServer);

                MailInfo[] infos = oClient.GetMailInfos();
                Console.WriteLine("Total {0} email(s)\r\n", infos.Length);

                for (int i = 0; i < infos.Length; i++)
                {
                    MailInfo info = infos[i];
                    Console.WriteLine("Index: {0}; Size: {1}; UIDL: {2}",
                        info.Index, info.Size, info.UIDL);

                    // Receive email from email server
                    Mail oMail = oClient.GetMail(info);

                    Console.WriteLine("From: {0}", oMail.From.ToString());
                    Console.WriteLine("Subject: {0}\r\n", oMail.Subject);

                    // Generate an unqiue email file name based on date time.
                    string fileName = _generateFileName(i + 1);
                    string fullPath = string.Format("{0}\\{1}", localInbox, fileName);

                    // Save email to local disk
                    oMail.SaveAs(fullPath, true);

                    // Mark email as read to prevent retrieving this email again.
                    oClient.MarkAsRead(info, true);

                    // If you want to delete current email, please use Delete method instead of MarkAsRead
                    // oClient.Delete(info);
                }

                // Quit and expunge emails marked as deleted from server.
                oClient.Quit();
                Console.WriteLine("Completed!");
            }
            catch (Exception ep)
            {
                Console.WriteLine(ep.Message);
            }
        }

        // client configuration
        // You should create your client id and client secret,
        // do not use the following client id in production environment, it is used for test purpose only.
        const string clientID = "eccbabb2-3377-4265-85c1-ea2fb515f075";
        const string clientSecret = "QaR_RR:-5WqTY[nni9pdBr9xVybqrAu4";
        // use IMAP scope
        const string scope = "https://outlook.office.com/IMAP.AccessAsUser.All%20offline_access%20email%20openid";
        const string authUri = "https://login.microsoftonline.com/common/oauth2/v2.0/authorize";
        const string tokenUri = "https://login.microsoftonline.com/common/oauth2/v2.0/token";

        // if your application is single tenant, please use tenant id instead of common in authUri and tokenUri
        // for example, your tenant is 669595d0-a4d7-47c5-8040-cf9970400e48, then
        // const string authUri = "https://login.microsoftonline.com/669595d0-a4d7-47c5-8040-cf9970400e48/oauth2/v2.0/authorize";
        // const string tokenUri = "https://login.microsoftonline.com/669595d0-a4d7-47c5-8040-cf9970400e48/oauth2/v2.0/token";

        static int GetRandomUnusedPort()
        {
            var listener = new TcpListener(IPAddress.Loopback, 0);
            listener.Start();
            var port = ((IPEndPoint)listener.LocalEndpoint).Port;
            listener.Stop();
            return port;
        }

        async void DoOauthAndRetrieveEmail()
        {
            // Creates a redirect URI using an available port on the loopback address.
            string redirectUri = string.Format("http://127.0.0.1:{0}/", GetRandomUnusedPort());
            Console.WriteLine("redirect URI: " + redirectUri);

            // Creates an HttpListener to listen for requests on that redirect URI.
            var http = new HttpListener();
            http.Prefixes.Add(redirectUri);
            Console.WriteLine("Listening ...");
            http.Start();

            // Creates the OAuth 2.0 authorization request.
            string authorizationRequest = string.Format("{0}?response_type=code&scope={1}&redirect_uri={2}&client_id={3}&prompt=login",
                authUri,
                scope,
                Uri.EscapeDataString(redirectUri),
                clientID
            );

            // Opens request in the browser.
            System.Diagnostics.Process.Start(authorizationRequest);

            // Waits for the OAuth authorization response.
            var context = await http.GetContextAsync();

            // Brings the Console to Focus.
            BringConsoleToFront();

            // Sends an HTTP response to the browser.
            var response = context.Response;
            string responseString = string.Format("<html><head></head><body>Please return to the app and close current window.</body></html>");
            var buffer = Encoding.UTF8.GetBytes(responseString);
            response.ContentLength64 = buffer.Length;
            var responseOutput = response.OutputStream;
            Task responseTask = responseOutput.WriteAsync(buffer, 0, buffer.Length).ContinueWith((task) =>
            {
                responseOutput.Close();
                http.Stop();
                Console.WriteLine("HTTP server stopped.");
            });

            // Checks for errors.
            if (context.Request.QueryString.Get("error") != null)
            {
                Console.WriteLine(string.Format("OAuth authorization error: {0}.", context.Request.QueryString.Get("error")));
                return;
            }

            if (context.Request.QueryString.Get("code") == null)
            {
                Console.WriteLine("Malformed authorization response. " + context.Request.QueryString);
                return;
            }

            // extracts the code
            var code = context.Request.QueryString.Get("code");
            Console.WriteLine("Authorization code: " + code);

            string responseText = await RequestAccessToken(code, redirectUri);
            Console.WriteLine(responseText);

            OAuthResponseParser parser = new OAuthResponseParser();
            parser.Load(responseText);

            var user = parser.EmailInIdToken;
            var accessToken = parser.AccessToken;

            Console.WriteLine("User: {0}", user);
            Console.WriteLine("AccessToken: {0}", accessToken);

            RetrieveMailWithXOAUTH2(user, accessToken);
        }

        async Task<string> RequestAccessToken(string code, string redirectUri)
        {
            Console.WriteLine("Exchanging code for tokens...");

            // builds the  request
            string tokenRequestBody = string.Format("code={0}&redirect_uri={1}&client_id={2}&grant_type=authorization_code",
                code,
                Uri.EscapeDataString(redirectUri),
                clientID
                );

            // if you use it in web application, please add clientSecret parameter
            /* string tokenRequestBody = string.Format("code={0}&redirect_uri={1}&client_id={2}&client_secret={3}&grant_type=authorization_code",
                code,
                Uri.EscapeDataString(redirectUri),
                clientID,
                clientSecret
                );
            */

            // sends the request
            HttpWebRequest tokenRequest = (HttpWebRequest)WebRequest.Create(tokenUri);
            tokenRequest.Method = "POST";
            tokenRequest.ContentType = "application/x-www-form-urlencoded";
            tokenRequest.Accept = "Accept=text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8";

            byte[] _byteVersion = Encoding.ASCII.GetBytes(tokenRequestBody);
            tokenRequest.ContentLength = _byteVersion.Length;

            Stream stream = tokenRequest.GetRequestStream();
            await stream.WriteAsync(_byteVersion, 0, _byteVersion.Length);
            stream.Close();

            try
            {
                // gets the response
                WebResponse tokenResponse = await tokenRequest.GetResponseAsync();
                using (StreamReader reader = new StreamReader(tokenResponse.GetResponseStream()))
                {
                    // reads response body
                    return await reader.ReadToEndAsync();
                }

            }
            catch (WebException ex)
            {
                if (ex.Status == WebExceptionStatus.ProtocolError)
                {
                    var response = ex.Response as HttpWebResponse;
                    if (response != null)
                    {
                        Console.WriteLine("HTTP: " + response.StatusCode);
                        using (StreamReader reader = new StreamReader(response.GetResponseStream()))
                        {
                            // reads response body
                            string responseText = await reader.ReadToEndAsync();
                            Console.WriteLine(responseText);
                        }
                    }
                }

                throw ex;
            }
        }

        // Hack to bring the Console window to front.

        [DllImport("kernel32.dll", ExactSpelling = true)]
        public static extern IntPtr GetConsoleWindow();

        [DllImport("user32.dll")]
        [return: MarshalAs(UnmanagedType.Bool)]
        public static extern bool SetForegroundWindow(IntPtr hWnd);

        public void BringConsoleToFront()
        {
            SetForegroundWindow(GetConsoleWindow());
        }
    }
}

C# - Retrieve email using Microsoft OAuth + Microsoft Graph API protocol

Here is a console application which demonstrates how to use Microsoft OAuth to do user authentication and retrieve email using Microsoft Graph API protocol.

Note

This sample cannot handle the event of Web Browser is closed by user manually before authentication is completed. You can refer to the better sample project which uses Web Browser Control in EAGetMail installation path.

using System;
using System.IO;
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Runtime.InteropServices;
using EAGetMail;
using System.Globalization;

namespace EAGetMailCSharpKb
{
    class Program
    {
        // Generate an unqiue email file name based on date time
        static string _generateFileName(int sequence)
        {
            DateTime currentDateTime = DateTime.Now;
            return string.Format("{0}-{1:000}-{2:000}.eml",
                currentDateTime.ToString("yyyyMMddHHmmss", new CultureInfo("en-US")),
                currentDateTime.Millisecond,
                sequence);
        }

        static void Main(string[] args)
        {
            Console.WriteLine("+------------------------------------------------------------------+");
            Console.WriteLine("  Sign in with MS OAuth                                             ");
            Console.WriteLine("   If you got \"This app isn't verified\" information in Web Browser, ");
            Console.WriteLine("   click \"Advanced\" -> Go to ... to continue test.");
            Console.WriteLine("+------------------------------------------------------------------+");
            Console.WriteLine("");
            Console.WriteLine("Press any key to sign in...");
            Console.ReadKey();

            try
            {
                Program p = new Program();
                p.DoOauthAndRetrieveEmail();
            }
            catch (Exception ep)
            {
                Console.WriteLine(ep.ToString());
            }

            Console.ReadKey();
        }


        void RetrieveMailWithXOAUTH2(string userEmail, string accessToken)
        {
            try
            {
                // Create a folder named "inbox" under current directory
                // to save the email retrieved.
                string localInbox = string.Format("{0}\\inbox", Directory.GetCurrentDirectory());
                // If the folder is not existed, create it.
                if (!Directory.Exists(localInbox))
                {
                    Directory.CreateDirectory(localInbox);
                }

                // Office 365 Graph API server address
                MailServer oServer = new MailServer("graph.microsoft.com",
                        userEmail,
                        accessToken, // use access token as password
                        ServerProtocol.MsGraphApi);

                // Set OAUTH 2.0
                oServer.AuthType = ServerAuthType.AuthXOAUTH2;
                // Enable SSL/TLS connection, most modern email server require SSL/TLS by default
                oServer.SSLConnection = true;

                MailClient oClient = new MailClient("TryIt");
                // Get new email only, if you want to get all emails, please remove this line
                oClient.GetMailInfosParam.GetMailInfosOptions = GetMailInfosOptionType.NewOnly;

                Console.WriteLine("Connecting {0} ...", oServer.Server);
                oClient.Connect(oServer);

                MailInfo[] infos = oClient.GetMailInfos();
                Console.WriteLine("Total {0} email(s)\r\n", infos.Length);

                for (int i = 0; i < infos.Length; i++)
                {
                    MailInfo info = infos[i];
                    Console.WriteLine("Index: {0}; Size: {1}; UIDL: {2}",
                        info.Index, info.Size, info.UIDL);

                    // Receive email from email server
                    Mail oMail = oClient.GetMail(info);

                    Console.WriteLine("From: {0}", oMail.From.ToString());
                    Console.WriteLine("Subject: {0}\r\n", oMail.Subject);

                    // Generate an unqiue email file name based on date time.
                    string fileName = _generateFileName(i + 1);
                    string fullPath = string.Format("{0}\\{1}", localInbox, fileName);

                    // Save email to local disk
                    oMail.SaveAs(fullPath, true);

                    // Mark email as read to prevent retrieving this email again.
                    oClient.MarkAsRead(info, true);

                    // If you want to delete current email, please use Delete method instead of MarkAsRead
                    // oClient.Delete(info);
                }

                // Quit and expunge emails marked as deleted from server.
                oClient.Quit();
                Console.WriteLine("Completed!");
            }
            catch (Exception ep)
            {
                Console.WriteLine(ep.Message);
            }
        }

        // client configuration
        // You should create your client id and client secret,
        // do not use the following client id in production environment, it is used for test purpose only.
        const string clientID = "eccbabb2-3377-4265-85c1-ea2fb515f075";
        const string clientSecret = "QaR_RR:-5WqTY[nni9pdBr9xVybqrAu4";
        // use IMAP scope
        const string scope = "Mail.Send%20Mail.ReadWrite%20offline_access%20email%20openid";
        const string authUri = "https://login.microsoftonline.com/common/oauth2/v2.0/authorize";
        const string tokenUri = "https://login.microsoftonline.com/common/oauth2/v2.0/token";

        // if your application is single tenant, please use tenant id instead of common in authUri and tokenUri
        // for example, your tenant is 669595d0-a4d7-47c5-8040-cf9970400e48, then
        // const string authUri = "https://login.microsoftonline.com/669595d0-a4d7-47c5-8040-cf9970400e48/oauth2/v2.0/authorize";
        // const string tokenUri = "https://login.microsoftonline.com/669595d0-a4d7-47c5-8040-cf9970400e48/oauth2/v2.0/token";

        static int GetRandomUnusedPort()
        {
            var listener = new TcpListener(IPAddress.Loopback, 0);
            listener.Start();
            var port = ((IPEndPoint)listener.LocalEndpoint).Port;
            listener.Stop();
            return port;
        }

        async void DoOauthAndRetrieveEmail()
        {
            // Creates a redirect URI using an available port on the loopback address.
            string redirectUri = string.Format("http://127.0.0.1:{0}/", GetRandomUnusedPort());
            Console.WriteLine("redirect URI: " + redirectUri);

            // Creates an HttpListener to listen for requests on that redirect URI.
            var http = new HttpListener();
            http.Prefixes.Add(redirectUri);
            Console.WriteLine("Listening ...");
            http.Start();

            // Creates the OAuth 2.0 authorization request.
            string authorizationRequest = string.Format("{0}?response_type=code&scope={1}&redirect_uri={2}&client_id={3}&prompt=login",
                authUri,
                scope,
                Uri.EscapeDataString(redirectUri),
                clientID
            );

            // Opens request in the browser.
            System.Diagnostics.Process.Start(authorizationRequest);

            // Waits for the OAuth authorization response.
            var context = await http.GetContextAsync();

            // Brings the Console to Focus.
            BringConsoleToFront();

            // Sends an HTTP response to the browser.
            var response = context.Response;
            string responseString = string.Format("<html><head></head><body>Please return to the app and close current window.</body></html>");
            var buffer = Encoding.UTF8.GetBytes(responseString);
            response.ContentLength64 = buffer.Length;
            var responseOutput = response.OutputStream;
            Task responseTask = responseOutput.WriteAsync(buffer, 0, buffer.Length).ContinueWith((task) =>
            {
                responseOutput.Close();
                http.Stop();
                Console.WriteLine("HTTP server stopped.");
            });

            // Checks for errors.
            if (context.Request.QueryString.Get("error") != null)
            {
                Console.WriteLine(string.Format("OAuth authorization error: {0}.", context.Request.QueryString.Get("error")));
                return;
            }

            if (context.Request.QueryString.Get("code") == null)
            {
                Console.WriteLine("Malformed authorization response. " + context.Request.QueryString);
                return;
            }

            // extracts the code
            var code = context.Request.QueryString.Get("code");
            Console.WriteLine("Authorization code: " + code);

            string responseText = await RequestAccessToken(code, redirectUri);
            Console.WriteLine(responseText);

            OAuthResponseParser parser = new OAuthResponseParser();
            parser.Load(responseText);

            var user = parser.EmailInIdToken;
            var accessToken = parser.AccessToken;

            Console.WriteLine("User: {0}", user);
            Console.WriteLine("AccessToken: {0}", accessToken);

            RetrieveMailWithXOAUTH2(user, accessToken);
        }

        async Task<string> RequestAccessToken(string code, string redirectUri)
        {
            Console.WriteLine("Exchanging code for tokens...");

            // builds the  request
            string tokenRequestBody = string.Format("code={0}&redirect_uri={1}&client_id={2}&grant_type=authorization_code",
                code,
                Uri.EscapeDataString(redirectUri),
                clientID
                );

            // if you use it in web application, please add clientSecret parameter
            /* string tokenRequestBody = string.Format("code={0}&redirect_uri={1}&client_id={2}&client_secret={3}&grant_type=authorization_code",
                code,
                Uri.EscapeDataString(redirectUri),
                clientID,
                clientSecret
                );
            */

            // sends the request
            HttpWebRequest tokenRequest = (HttpWebRequest)WebRequest.Create(tokenUri);
            tokenRequest.Method = "POST";
            tokenRequest.ContentType = "application/x-www-form-urlencoded";
            tokenRequest.Accept = "Accept=text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8";

            byte[] _byteVersion = Encoding.ASCII.GetBytes(tokenRequestBody);
            tokenRequest.ContentLength = _byteVersion.Length;

            Stream stream = tokenRequest.GetRequestStream();
            await stream.WriteAsync(_byteVersion, 0, _byteVersion.Length);
            stream.Close();

            try
            {
                // gets the response
                WebResponse tokenResponse = await tokenRequest.GetResponseAsync();
                using (StreamReader reader = new StreamReader(tokenResponse.GetResponseStream()))
                {
                    // reads response body
                    return await reader.ReadToEndAsync();
                }

            }
            catch (WebException ex)
            {
                if (ex.Status == WebExceptionStatus.ProtocolError)
                {
                    var response = ex.Response as HttpWebResponse;
                    if (response != null)
                    {
                        Console.WriteLine("HTTP: " + response.StatusCode);
                        using (StreamReader reader = new StreamReader(response.GetResponseStream()))
                        {
                            // reads response body
                            string responseText = await reader.ReadToEndAsync();
                            Console.WriteLine(responseText);
                        }
                    }
                }

                throw;
            }
        }

        // Hack to bring the Console window to front.

        [DllImport("kernel32.dll", ExactSpelling = true)]
        public static extern IntPtr GetConsoleWindow();

        [DllImport("user32.dll")]
        [return: MarshalAs(UnmanagedType.Bool)]
        public static extern bool SetForegroundWindow(IntPtr hWnd);

        public void BringConsoleToFront()
        {
            SetForegroundWindow(GetConsoleWindow());
        }
    }
}

C# - Retrieve email using Microsoft OAuth + Office 365 EWS protocol

Here is a console application which demonstrates how to use Microsoft OAuth to do user authentication and retrieve email using EWS protocol.

Note

This sample cannot handle the event of Web Browser is closed by user manually before authentication is completed. You can refer to the better sample project which uses Web Browser Control in EAGetMail installation path.

using System;
using System.IO;
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Runtime.InteropServices;
using EAGetMail;
using System.Globalization;

namespace EAGetMailCSharpKb
{
    class Program
    {
        // Generate an unqiue email file name based on date time
        static string _generateFileName(int sequence)
        {
            DateTime currentDateTime = DateTime.Now;
            return string.Format("{0}-{1:000}-{2:000}.eml",
                currentDateTime.ToString("yyyyMMddHHmmss", new CultureInfo("en-US")),
                currentDateTime.Millisecond,
                sequence);
        }

        static void Main(string[] args)
        {
            Console.WriteLine("+------------------------------------------------------------------+");
            Console.WriteLine("  Sign in with MS OAuth                                             ");
            Console.WriteLine("   If you got \"This app isn't verified\" information in Web Browser, ");
            Console.WriteLine("   click \"Advanced\" -> Go to ... to continue test.");
            Console.WriteLine("+------------------------------------------------------------------+");
            Console.WriteLine("");
            Console.WriteLine("Press any key to sign in...");
            Console.ReadKey();

            try
            {
                Program p = new Program();
                p.DoOauthAndRetrieveEmail();
            }
            catch (Exception ep)
            {
                Console.WriteLine(ep.ToString());
            }

            Console.ReadKey();
        }


        void RetrieveMailWithXOAUTH2(string userEmail, string accessToken)
        {
            try
            {
                // Create a folder named "inbox" under current directory
                // to save the email retrieved.
                string localInbox = string.Format("{0}\\inbox", Directory.GetCurrentDirectory());
                // If the folder is not existed, create it.
                if (!Directory.Exists(localInbox))
                {
                    Directory.CreateDirectory(localInbox);
                }

                // Office 365 server address
                MailServer oServer = new MailServer("outlook.office365.com",
                        userEmail,
                        accessToken, // use access token as password
                        ServerProtocol.ExchangeEWS); // use Http EWS protocol

                // Set OAUTH 2.0
                oServer.AuthType = ServerAuthType.AuthXOAUTH2;
                // Enable SSL/TLS connection
                oServer.SSLConnection = true;

                MailClient oClient = new MailClient("TryIt");
                // Get new email only, if you want to get all emails, please remove this line
                oClient.GetMailInfosParam.GetMailInfosOptions = GetMailInfosOptionType.NewOnly;

                Console.WriteLine("Connecting {0} ...", oServer.Server);
                oClient.Connect(oServer);

                MailInfo[] infos = oClient.GetMailInfos();
                Console.WriteLine("Total {0} email(s)\r\n", infos.Length);

                for (int i = 0; i < infos.Length; i++)
                {
                    MailInfo info = infos[i];
                    Console.WriteLine("Index: {0}; Size: {1}; UIDL: {2}",
                        info.Index, info.Size, info.UIDL);

                    // Receive email from email server
                    Mail oMail = oClient.GetMail(info);

                    Console.WriteLine("From: {0}", oMail.From.ToString());
                    Console.WriteLine("Subject: {0}\r\n", oMail.Subject);

                    // Generate an unqiue email file name based on date time.
                    string fileName = _generateFileName(i + 1);
                    string fullPath = string.Format("{0}\\{1}", localInbox, fileName);

                    // Save email to local disk
                    oMail.SaveAs(fullPath, true);

                    // Mark email as read to prevent retrieving this email again.
                    oClient.MarkAsRead(info, true);

                    // If you want to delete current email, please use Delete method instead of MarkAsRead
                    // oClient.Delete(info);
                }

                // Quit and expunge emails marked as deleted from server.
                oClient.Quit();
                Console.WriteLine("Completed!");
            }
            catch (Exception ep)
            {
                Console.WriteLine(ep.Message);
            }
        }

        // client configuration
        // You should create your client id and client secret,
        // do not use the following client id in production environment, it is used for test purpose only.
        const string clientID = "eccbabb2-3377-4265-85c1-ea2fb515f075";
        const string clientSecret = "QaR_RR:-5WqTY[nni9pdBr9xVybqrAu4";
        // use EWS scope
        const string scope = "https://outlook.office.com/EWS.AccessAsUser.All%20offline_access%20email%20openid";
        const string authUri = "https://login.microsoftonline.com/common/oauth2/v2.0/authorize";
        const string tokenUri = "https://login.microsoftonline.com/common/oauth2/v2.0/token";

        // if your application is single tenant, please use tenant id instead of common in authUri and tokenUri
        // for example, your tenant is 669595d0-a4d7-47c5-8040-cf9970400e48, then
        // const string authUri = "https://login.microsoftonline.com/669595d0-a4d7-47c5-8040-cf9970400e48/oauth2/v2.0/authorize";
        // const string tokenUri = "https://login.microsoftonline.com/669595d0-a4d7-47c5-8040-cf9970400e48/oauth2/v2.0/token";

        static int GetRandomUnusedPort()
        {
            var listener = new TcpListener(IPAddress.Loopback, 0);
            listener.Start();
            var port = ((IPEndPoint)listener.LocalEndpoint).Port;
            listener.Stop();
            return port;
        }

        async void DoOauthAndRetrieveEmail()
        {
            // Creates a redirect URI using an available port on the loopback address.
            string redirectUri = string.Format("http://127.0.0.1:{0}/", GetRandomUnusedPort());
            Console.WriteLine("redirect URI: " + redirectUri);

            // Creates an HttpListener to listen for requests on that redirect URI.
            var http = new HttpListener();
            http.Prefixes.Add(redirectUri);
            Console.WriteLine("Listening ...");
            http.Start();

            // Creates the OAuth 2.0 authorization request.
            string authorizationRequest = string.Format("{0}?response_type=code&scope={1}&redirect_uri={2}&client_id={3}&prompt=login",
                authUri,
                scope,
                Uri.EscapeDataString(redirectUri),
                clientID
            );

            // Opens request in the browser.
            System.Diagnostics.Process.Start(authorizationRequest);

            // Waits for the OAuth authorization response.
            var context = await http.GetContextAsync();

            // Brings the Console to Focus.
            BringConsoleToFront();

            // Sends an HTTP response to the browser.
            var response = context.Response;
            string responseString = string.Format("<html><head></head><body>Please return to the app and close current window.</body></html>");
            var buffer = Encoding.UTF8.GetBytes(responseString);
            response.ContentLength64 = buffer.Length;
            var responseOutput = response.OutputStream;
            Task responseTask = responseOutput.WriteAsync(buffer, 0, buffer.Length).ContinueWith((task) =>
            {
                responseOutput.Close();
                http.Stop();
                Console.WriteLine("HTTP server stopped.");
            });

            // Checks for errors.
            if (context.Request.QueryString.Get("error") != null)
            {
                Console.WriteLine(string.Format("OAuth authorization error: {0}.", context.Request.QueryString.Get("error")));
                return;
            }

            if (context.Request.QueryString.Get("code") == null)
            {
                Console.WriteLine("Malformed authorization response. " + context.Request.QueryString);
                return;
            }

            // extracts the code
            var code = context.Request.QueryString.Get("code");
            Console.WriteLine("Authorization code: " + code);

            string responseText = await RequestAccessToken(code, redirectUri);
            Console.WriteLine(responseText);

            OAuthResponseParser parser = new OAuthResponseParser();
            parser.Load(responseText);

            var user = parser.EmailInIdToken;
            var accessToken = parser.AccessToken;

            Console.WriteLine("User: {0}", user);
            Console.WriteLine("AccessToken: {0}", accessToken);

            RetrieveMailWithXOAUTH2(user, accessToken);
        }

        async Task<string> RequestAccessToken(string code, string redirectUri)
        {
            Console.WriteLine("Exchanging code for tokens...");

            // builds the  request
            string tokenRequestBody = string.Format("code={0}&redirect_uri={1}&client_id={2}&grant_type=authorization_code",
                code,
                Uri.EscapeDataString(redirectUri),
                clientID
                );

            // if you use it in web application, please add clientSecret parameter
            /* string tokenRequestBody = string.Format("code={0}&redirect_uri={1}&client_id={2}&client_secret={3}&grant_type=authorization_code",
                code,
                Uri.EscapeDataString(redirectUri),
                clientID,
                clientSecret
                );
            */

            // sends the request
            HttpWebRequest tokenRequest = (HttpWebRequest)WebRequest.Create(tokenUri);
            tokenRequest.Method = "POST";
            tokenRequest.ContentType = "application/x-www-form-urlencoded";
            tokenRequest.Accept = "Accept=text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8";

            byte[] _byteVersion = Encoding.ASCII.GetBytes(tokenRequestBody);
            tokenRequest.ContentLength = _byteVersion.Length;

            Stream stream = tokenRequest.GetRequestStream();
            await stream.WriteAsync(_byteVersion, 0, _byteVersion.Length);
            stream.Close();

            try
            {
                // gets the response
                WebResponse tokenResponse = await tokenRequest.GetResponseAsync();
                using (StreamReader reader = new StreamReader(tokenResponse.GetResponseStream()))
                {
                    // reads response body
                    return await reader.ReadToEndAsync();
                }

            }
            catch (WebException ex)
            {
                if (ex.Status == WebExceptionStatus.ProtocolError)
                {
                    var response = ex.Response as HttpWebResponse;
                    if (response != null)
                    {
                        Console.WriteLine("HTTP: " + response.StatusCode);
                        using (StreamReader reader = new StreamReader(response.GetResponseStream()))
                        {
                            // reads response body
                            string responseText = await reader.ReadToEndAsync();
                            Console.WriteLine(responseText);
                        }
                    }
                }

                throw ex;
            }
        }

        // Hack to bring the Console window to front.

        [DllImport("kernel32.dll", ExactSpelling = true)]
        public static extern IntPtr GetConsoleWindow();

        [DllImport("user32.dll")]
        [return: MarshalAs(UnmanagedType.Bool)]
        public static extern bool SetForegroundWindow(IntPtr hWnd);

        public void BringConsoleToFront()
        {
            SetForegroundWindow(GetConsoleWindow());
        }
    }
}

C# - Retrieve email using Microsoft OAuth + Office 365 EWS/IMAP4/Graph API protocol in ASP.NET/ASP MVC

If you use Microsoft OAuth in ASP.NET/ASP MVC application, you should use a ASP.NET/ASP MVC page to get authorization code instead of HttpListener. You need to add your ASP.NET/ASP MVC page path to Authentication -> add a platform -> web -> Redirect URIs in your Azure application.

azure application web redirect uri
// if you use it in web application, please add clientSecret parameter
string tokenRequestBody = string.Format("code={0}&redirect_uri={1}&client_id={2}&client_secret={3}&grant_type=authorization_code",
    code,
    Uri.EscapeDataString(redirectUri),
    clientID,
    clientSecret
    );
// Please add http://localhost:54098/oauth/token to Authorized redirect URIs in your Google/MS Azure project.
public ActionResult Token(string code)
{
    // code parameter is the authorization code returned by Microsoft OAuth server,
    // then you can use it to request AccessToken
    // just like RequestAccessToken method in previous example
}

TLS 1.2 protocol

TLS is the successor of SSL, more and more SMTP servers require TLS 1.2 encryption now.

If your operating system is Windows XP/Vista/Windows 7/Windows 2003/2008/2008 R2/2012/2012 R2, you need to enable TLS 1.2 protocol in your operating system like this:

Enable TLS 1.2 on Windows XP/Vista/7/10/Windows 2008/2008 R2/2012

EA Oauth Service for Office 365

If you are not the tenant administrator and you don’t have the permission to create or grant the application in Azure, or if your code is too complex or out of maintenance, and you don’t want to change anything in your source codes, then you can have a try with EA Oauth Service for Offic365. It provides an easy way for the legacy email application that doesn’t support OAUTH 2.0 to send and retrieve email from Office 365 without changing any codes. SMTP, POP, IMAP and SSL/TLS protocols are supported.

Appendix

Comments

If you have any comments or questions about above example codes, please click here to add your comments.
