Add Digital Signature (S/MIME + RSA-PSS padding) to outgoing email in Exchange Server 2003/2007/2010/2013/2016/2019 and IIS SMTP Service

Use Digital Signature (S/MIME) in Email Client

Most popular email clients support email digital signature. To setup digital signature in your email client, you need a digital certificate with a private key for the sender’s email address. You can refer to the documentation of your email client for the settings.

This tutorial introduces how to use S/MIME Plugin to add digital signature to an email in IIS SMTP Service or Exchange 2003 automatically without an email client. If you send emails from an email tool that doesn’t support digital signature, this plugin can help to sign email on server side.

How S/MIME Plugin Works?

In IIS SMTP Service or Exchange 2003, S/MIME Plugin works as a SMTP event sink; In Exchange 2007/2010/2013/2016, it works as a transport agent. It adds digital signature to an email based on pre-defined rules.

A digital signature rule can be defined for a single sender or multiple senders.

How Disclaimer plugin works with digital signature in Exchange Server

Import, Export and Generate Test Certificate

To view/import/export certificate in Current User Store and Local Machine Store, you can open the Certificates MMC Snap-in like this:

On the Windows Start menu, click Run, and then type mmc. Click Enter. This starts the Microsoft Management Console (MMC).
In the console, click the File menu and then click Add/Remove Snap-in.

In the Add/Remove Snap-in window, click the Add button.
On the Snap-in list, select Certificates and then click Add.
In the Certificates Snap-in window, select My user account,
and select Certificates and then click Add again.
In the Certificates Snap-in window, select Computer account, and then click Next.
In the Select Computer window, select Local computer, and then click Finish. This adds the Certificates Snap-in to the list. Close the window.
In the Add/Remove snap-in window, click OK. This adds the Certificates snap-in to the mmc console.
Expand the Certificates node to see the different types of certificates.

Now you can view all certificates in current user store and local machine store.

As S/MIME Plug can’t access certificates from the Current User Store, if your certificate is stored in the Current User Store, you must export it from the Current User Store.

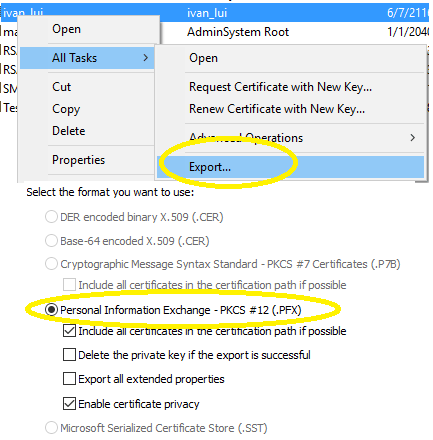

Export Certificate from Certificate Store

You can export certificate(s) from Current User Store like this:

Certificates MMC Snap-in, select Certificates - Current User -> Personal -> Certificates,
Select the certificate(s) you want to export, you can select multiple certificates by Ctrl + Left Click,
Right click -> All Tasks -> Export -> Next
As signing email requires a private key, you need to select Yes, export the private key,

Select Personal Information Exchange - PKCS #12 (.PFX) -> Next,
Check Password, and input a password as protection password,
Save it as *.pfx file.

You can use exported pfx file as Certificate Source in S/MIME Plugin.

Note

If you selected No, doesn't export private key, you can export the certificate as .cer, or pfx and sst (multiple certificate selected). The certificate without a private key is used for email encryption only.

Pfx, Cert and Sst file

Pfx file can contain multiple certificates with public/private keys, it can be used for both email signing and encryption.
Cert file is a single certificate without a private key, it is used for email encryption only.
Sst file contains multiple certificates without a private key, it is used for email encryption only.

Import Certificate to Certificate Store

You can import a certificate file to Certificate Machine Store like this:

Certificates MMC Snap-in, select Certificates - (Local Computer) -> Personal -> Certificates,
Right click -> All Tasks -> Import,

Import certificate to certificate machine store

Select certificate type and input certificate path -> Next,
If it is pfx file, you should input pfx protection password and check Mark this key as exportable ...,
Place all certificates in the following store: Personal -> Next -> Finish.

After certificate file was imported to Certificate Machine Store, you can use Certificate Machine Store as Certificate Source instead of certificate file.

Generate Self-Signed Root Certificate

If the email digital certificate is not issued by third-party authorities, the email client will prompt an error of “Certificate is not issued by a trusted publisher”.

However, for internal enterprise usage or test purpose, you can create a self-signed root certificate and issue this digital certificate to internal users by New-SelfSignedCertificate PowerShell cmdlet.

Note

If you have an existing certificate from third-party authorities, you can skip this section.

Note

New-SelfSignedCertificate requires PowerShell 3.0 on Windows 10, Windows 8/8.1 and Windows Server 2012/2012 R2/2016.

You can create a root certificate like this:

                    New-SelfSignedCertificate -Type Custom -HashAlgorithm sha256 -KeyLength 2048 -KeyUsage CRLSign, CertSign, KeyAgreement, DataEncipherment, KeyEncipherment, DigitalSignature -KeyAlgorithm RSA -Subject "CN=Test Root V1" -CertStoreLocation "cert:\CurrentUser\My" -NotAfter (get-date).AddDays(7300)



Then the new root certificate can be found in Certificates MMC Snap-in, select Certificates - Current User -> Personal -> Certificates.

Now you can issue the certificate to users from root certificate like this:

Generate Email Certificate Issued by Root Certificate

Here is an example to issue the certificate from the root certificate generated in the previous section.

                    Set-Location -path cert:\CurrentUser\My
$signer = Get-Childitem -DnsName "Test Root V1"
New-SelfSignedCertificate -HashAlgorithm sha256 -Type Custom -Subject "E=test@emailarchitect.net,CN=SMIME Tester 2048" -TextExtension @("2.5.29.37={text}1.3.6.1.5.5.7.3.4","2.5.29.17={text}email=test@emailarchitect.net&upn=test@emailarchitect.net") -KeyLength 2048 -KeyAlgorithm RSA -SmimeCapabilities -CertStoreLocation "Cert:\CurrentUser\My" -NotAfter (get-date).AddDays(365) -Signer $signer



Then the new email certificate can be found in Certificates MMC Snap-in, select Certificates - Current User -> Personal -> Certificates.

You can export it together with a private key as a pfx file and use it in Certificate Source. Alternatively, you can install a pfx file to Certificates (Local Computer) -> Personal -> Certificates and use Machine Store as Certificate Source.

Install Root Certificate to Client Machine

If you used the above certificate to sign emails, email client would give an error about Certificate is not issued by a trusted publisher. You can install the root certificate to client machines like this to avoid the error.

Now you can export the root certificate to a cert file and install it on Trusted Root Certification Authorities:

Certificates MMC Snap-in, select Certificates - Current User -> Personal -> Certificates,
Select the root certificate (Test Root V1),
Right click -> All Tasks -> Export -> Next
Select No, do not export the private key,

Select DER encoded binary X.509 (.CER),
Save it as .cer file.

Install it to Local\Computer\Trusted Root Certification Authorities

Certificates MMC Snap-in, select Certificates - (Local Computer) -> Trusted Root Certification Authorities -> Certificates,
Right click -> All Tasks -> Import,
Select the .cer file from local disk -> Next,
Place all certificates in the following store: Trusted Root Certification Authorities -> Next -> Finish.

Install it to Current User\Trusted Root Certification Authorities

Certificates MMC Snap-in, select Certificates - Current User -> Trusted Root Certification Authorities -> Certificates,
Right click -> All Tasks -> Import,
Select the .cer file from local disk -> Next,
Place all certificates in the following store: Trusted Root Certification Authorities -> Next -> Finish.

After you installed the root certificate to Trusted Root Certification Authorities, user certificate chain becomes valid now.

Create a Rule for Digital Signature

You can create a test digital signature rule for a user like this:

Click Digital Signature -> New,
Input any description for current rule,
Input the user email address in Sender Address,

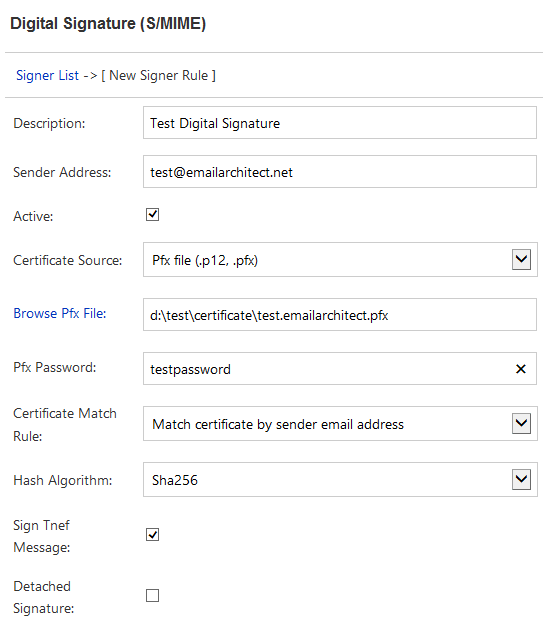

Create digital signature rule in Exchange Server

Change Certificate Source to Pfx file (.p12, .pfx),
Input Pfx file path and Pfx file password,

Important

IIS SMTP Service is running as Local System user, and Exchange Transport Agent is running as Network Service user, so do not put the certificate file to Desktop or user-dependent folder, S/MIME Plugin doesn’t have permission to read certificate files in these locations.

Finally, click Save to save current rule.

After rule is saved, click Test, current rule will be executed with a virtual email message, you can find the result in test dialog box.

If Test all rules is checked, all rules defined on current machine will be executed with a virtual email message.

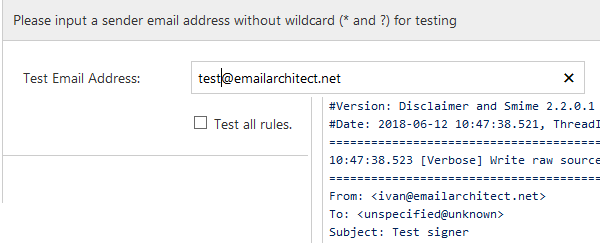

Test digital signature in Exchange Server

If the test result looks good, you can send a test email from that user, and validate if the received email was digital signed.

Certificate Private Key Permission

Signing email requires certificate private key, if you got Access Denied error in Debug Log, you can solve it like this:

If Certificate Source is pfx file, you can import it to Certificate Machine Store by Import Certificate to Certificate Store at first, then change Certificate Source to Certificate Machine Store.

Now you can change the private key permission like this:

Certificates MMC Snap-in, select Certificates (Local Computer) -> Personal -> Certificates,
Select the certificate you want to adjust the permission,
Right click -> All Tasks -> Manage Private Key -> Edit
Assign Network Service full control to this key.

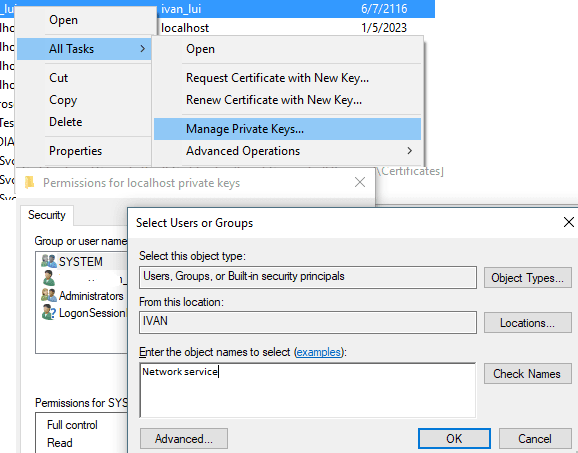

Change certificate private key permission

Sender Address Pattern and Wildcard

A single email address or email address with wildcard (* and ?) can be used in Sender Address. It indicates current rule is only enabled for matched sender address.

A digital certificate can only be used for a specific email address. For example, you cannot use test@emailarchitect.net's certificate to sign support@emailarchitect.net, email client would prompt an error due to address not match.

Therefore, if you used wildcard (* and ?) in sender address, you should specify a Certificate Source that contains multiple certificates, and set Certificate Match Rule to Match certificate by sender email address, to enable S/MIME Plugin to find the correct certificate to sign the email.

Note

If no certificate is identified for the current sender, the message won’t be signed.

Certificate Source and Certificate Match Rule

Certificate Source

Certificate Machine Store

Look up the certificate from Windows built-in certificate machine store.
Pfx File

Look up the certificate from the specified P12/Pfx file.

Both machine store and pfx file can contain multiple certificates. Please refer to Import, Export and Generate Test Certificate to learn how to import/export certificate from the certificate store.

Certificate Match Rule

Match certificate by sender email address

This option is recommended. The digital certificate can be found based on sender email address, it can be used with any certificate source.
Specified certificate

To use this option, Sender Address must not contain wildcard (* and ?). You can use it when the certificate subject doesn’t contain an email address.

Signature Hash Algorithm

Sha1, Sha256, Sha384 and Sha512 are supported. For security reason, you should use Sha256, Sha384 or Sha512 hash algorithm.

RSA-PSS Padding in Digital Signature

To comply with EDIFACT in Germany/EUROPE, please check this option and use sha256 or higher SHA algorithm. If RSA-PSS padding in signature is used, because most email clients don’t support RSA-PSS signature verification, so they would report error for the digital signature. However it can be verified by EDIFACT authorities.

To use this feature, it also requires .NET framework 2.0, 4.0 or 4.61 installed on the server. Because .NET framework 2.0/4.0 is built-in feature in modern Windows Server, so you don’t have to install .NET framework manually in most cases.

Sign Tnef Message

Tnef is an internal email format in Exchange Server. If this option is checked, Tnef messages will first be converted to RFC822/message format by S/MIME Plugin, and then be signed by the specified certificate.

Detached Signature

If this option is checked, the signature is detached from email original data.
